Normal | Power UP | ||||
---|---|---|---|---|---|

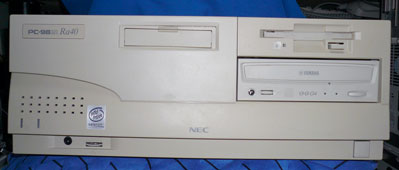

Name | PC-9821Ra40/P60CZ | PC-9821RaIII73/X43CZ | |||
Mother Board | Name | NEC G8YKK | |||
Chipset | Intel 440FX (Natoma) + Star Alpha2 | ||||
Socket | Slot 1 (SECC) | Socket 370 (FC-PGA) | |||
Sys. Clock | 66MHz | 66MHz | |||
Regulator | - | Power Leap PL-iP3 Rev 2.0 | |||
VRM | On board (HIP6004ACB) | ||||
PCI Rev. | 2.1 | ||||
PnP (BIOS Rev.) |
Support (0.05) | ||||
CPU | Type | Intel Celeron-400 (32bit, Internal 64bit) | Intel PentiumIII-1.10 (32bit, Internal 64bit) | ||
Operation Clock | 400MHz | 733MHz | |||
1stCache | 32KB | 32KB | |||
2ndCache | 128KB (Unified Non Blocking L2 Cache) | 256KB (Unified Non Blocking L2 Cache) | |||
Coprocessor | On Chip | On Chip | |||
Memory | Volume | 32MB | 128MB | ||
Maximum | 256MB | 512MB | |||
Type | 72pin EDO DRAM with ECC SIMM | ||||
Speed | 66MHz | 66MHz | |||
Graphic | Chip | Trident TGUI9682XGi | Nvidia GeForce7600GS | ||
VRAM | 2MB | 128MB | |||
Connection | On sub board PCI-Bus | On PCI-Bus | |||
Sound | Chip | Crystal CS4231 | C-media CMI8738-6CH + Crystal CS4231 | ||
Type | PCM | PCM (5.1ch), PCM | |||
MIDI | Nothing | Roland GPPC-NA (GM, GS, MT-32) | |||
Modem | Name | Nothing | Nothing | ||
MAX Speed | - | - | |||
Extend Bus | C-Bus | #1 | - | NEC | PC-9821RA-E01 |
#2 | - | Roland | GPPC-NA | ||
#3 | - | Kurouto Shikou | CHANPON3-PCI/Sub | PCI-Bus | #1 | - | Kurouto Shikou | CHANPON3-PCI/Main |
#2 | - | Kurouto Shikou Galaxy |
PCIEX1-PCI GF7600GS-LP/128D3/DVI/PCIE |
||
PC Card | #1 | Nothing | - | - | |
#2 | - | - | - | ||
Interface | IDE | Type | Enhanced IDE | Enhanced IDE | |
Connection | On Board PCI-Bus | On Board PCI-Bus | |||
RAID | - | - | |||
SCSI | Type | Nothing | Ultra SCSI (inside Ultra2 Wide SCSI) | ||
Connection | - | On PCI-Bus | |||
RS-232C | MAX Speed | 115.200bps | |||
Channel | 2 Ch. | ||||
LAN | Type | 100BASE-TX/10BASE-T | |||
Connection | On Board PCI-Bus | ||||
Channel | 1 Ch. | ||||
Graphic | RGB (IN, OUT) | RGB (IN, OUT), Video/S (OUT) | |||
Sound | LINE (IN, OUT), Phone, Mic | LINE (IN, OUT), Phone, Mic, SP/DIF (IN, OUT) | |||
Joystick | Nothing | Nothing | |||
Others | Keyboard, Mouse, Pallalel | Keyboard, Mouse, Printer, USB (2.0) x3 | |||
Drive | FDD | 3.5"-2HD 3mode 1drive: NEC FD1231T | 3.5"-2HD 3mode 2drives: NEC FD1231T | ||
HDD | Enhanced IDE: Quantum Fireball ST 4.3A (4.3GB) | Ultra SCSI: IBM DCAS-34330 (4.3GB) | |||
CD-ROM | ATAPI: SONY CDU-611 (Speed x24) | Fast SCSI: YAMAHA CRW8424S (Speed W/RW/R x8/x4/x24) |
|||
Others | Nothing | Nothing | |||
Display | Nothing | Nothing | |||
Printer | Nothing | Nothing | |||
Others | Nothing | Nothing |
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
