Normal | Power UP | ||||
---|---|---|---|---|---|

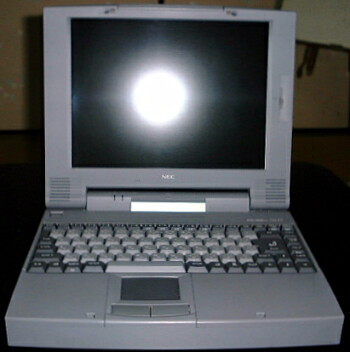

Name | PC-9821Na13/H10 | PC-9821Na13/H43N Pro | |||
Mother Board | Name | NEC G8XGG | |||
Chipset | Intel 430MX (Mobile Triton) | ||||
Socket | Nothing | ||||
Sys. Clock | 66MHz | 66MHz | |||
PnP (BIOS Rev.) |
Support (0.10) | ||||
CPU | Type | Intel Pentium-133 (32bit, internal 64bit) | Intel Pentium-133 (32bit, internal 64bit) | ||
Operation Clock | 133MHz | 133MHz | |||
1stCache | 16KB | 16KB | |||
Coprocessor | On Chip | On Chip | |||
Memory | 2ndCache | Volume | 256KB | ||
Maximum | 256KB | ||||
Type | Pipelined Burst SRAM | ||||
Volume | 16MB | 80MB | |||
Maximum | 80MB | ||||
Type | F.P. DRAM with Parity Module | ||||
LCD Display | Type | 12.1" TFT Type Backlight LCD | |||
Color | 18bit Colors | ||||
MAX Resolution | 800 x 600 dots | ||||
Graphic | Chip | Cirrus Logic GD7548 | |||
VRAM | 1MB | ||||
Connection | On Board PCI-Bus | ||||
Sound | Chip | YAMAHA YMF297 + Crystal CS4231 | |||
Type | PCM, Enhanced/FM, PSG, Rhythm | ||||
MIDI | Nothing | Nothing | |||
Modem | Name | Nothing | Nothing | ||
MAX Speed | - | - | |||
Extend Bus | PC CARD | #1 | - | MELCO | LPC3-TX |
#2 | - | I-O DATA | PCSC-F | ||
Extend I/O Bus | 198pin Type | NEC | PC-9821N-U07 | ||
98 Note Bay | NEC PC-9821N-P04 (FDD) | NEC | PC-9821N-P04 | ||
Interface | IDE | Type | Enhanced IDE | Enhanced IDE | |
Connection | On Board | On Board | |||
SCSI | Type | Nothing | Fast SCSI (Ultra SMIT) | ||
Connection | - | On PCMCIA Slot | |||
RS-232C | MAX Speed | 115,200bps | |||
Channel | 1 Ch. | ||||
IrDA | 1 Ch. | ||||
LAN | Type | Nothing | 100BASE-TX/10BASE-T | ||
LAN | - | On PCMCIA Slot | |||
Graphic | RGB (OUT) | RGB (OUT) | |||
Sound | Line (IN, OUT), Phone, Mic (Internal) | Line (IN, OUT), Phone, Mic (Internal) | |||
Joystick | (Sound Blaster Style x1) | (Sound Blaster Style x1) | |||
Others | Tenkeyboard, Mouse, Printer | Tenkeyboard, Mouse, Printer | |||
Pointing Device | 98 Slidepad | ||||
Drive | FDD | 3.5"-2HD 3mode 1drive | 3.5"-2HD 3mode 1drive | ||
HDD | Enhanced IDE: DSOA-31080 (1.0GB) | Enhanced IDE: I-O DATA HDNS-4.3G (4.3GB) | |||
CD-ROM | ATAPI: NEC PC-9821NA-C04 (Speed x4) | ATAPI: NEC PC-9821NA-C04 (Speed x4) | |||
Others | Nothing | Nothing | |||
Display | Nothing | Nothing | |||
Printer | Nothing | Nothing | |||
Others | Nothing | Tenkeyboard: NEC PC-9801N-23 PC-Card Pack: NEC PC-9821N-P02 TV Tuner Pack: NEC PC-9821N-P03 2nd BATT.: NEC PC-9821NA-C02 |
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
