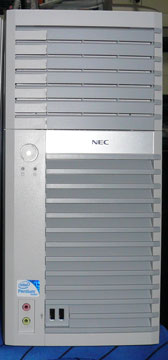

Express 5800/S70 RB

  Normal Power UP
Name N8100-9021PS01 N8100-9021PS01
Mother Board Name MSI MS-9666
Chipset Intel i3450
Socket LGA 1156
Sys Clock 1060MHz 1060MHz
Regulator -
VRM On Board
PCI Rev. 2.3
PCI-Express Rev. 2.0
PnP
(BIOS Rev.)
Support (1.0.0024) Support (1.0.0024)
CPU Type intel Pentium G6950 (64bit) intel Pentium G6950 (64bit)
Core / Thread 2/ 2 2/ 2
Operation Clock 2.8GHz 2.8GHz
1stCache 64KB x2 64KB x2
2ndCache 256KB x2 (On die, Full Speed) 256KB x2 (On die, Full Speed)
3rdCache 3MB (On die, Full Speed) 3MB (On die, Full Speed)
Coprocessor On Chip On Chip
Memory Volume 1GB 16GB
Maximum 8GB 16GB
Type 240pin DDR3 SDRAM Non E.C.C. DIMM (Dual Channel Support)
Speed DDR3 1060/ PC3-8500
Graphic Chip Intel HD Graphics Intel HD Grapics
VRAM 256MB 256MB
Connection On Chip On PCI Express x16 Bus
Sound Chip Realtek ALC888S Realtek ALC888S
Type PCM (5.1 Ch) PCM (5.1 Ch)
MIDI Nothing Nothing
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus PCI-Express
Bus
#1 (x16) - - -
#2 (x8 *1) - - -
#3 (x8 *2) - Datamax CL-PCIE09-BP
PCI Bus #4 - - -
Express Card #1 Nothing - -
Interface SATA Type Serial-ATAII Serial-ATAII
Connection On Board On Board
RAID Support Support
IDE Type Nothing Nothing
Connection - -
RAID - -
SCSI Type Nothing Nothing
Connection - -
RS-232C MAX Speed 115.200bps
Channel 2 Ch.
LAN Type 1000BASE-T
Connection On Board PCI Express
Channel 1 Ch.
Graphic RGB (OUT), Digital-DVI (OUT) RGB (OUT), Digital-DVI (OUT)
Sound Line (IN, OUT), Mic x2, Headphone Line (IN, OUT), Mic x2, Headphone
Joystick Nothing Nothing
Others Keyboard, Mouse, USB (2.0) x8 Keyboard, Mouse, USB (2.0) x8
Drive FDD Nothing Nothing
HDD Serial-ATAII: Western Digital WD1602ABYS (160GB) Serial-ATAII: Western Digital WD1602ABYS (160GB)
Serial-ATAII: Western Digital WD1602ABYS (160GB)
CD-ROM Nothing Nothing
Others DVD-ROM: Hitachi-LG DH40N (Speed x16) DVD-ROM: Hitachi-LG DH40N (Speed x16)
PC Case Type ATX Micro Tower
Name NEC 243-421110-644
Power Supply DELTA DPS-400AB-8 (400W) DELTA DPS-400AB-8 (400W)
Display Nothing Nothing
Printer Nothing Nothing
Others Nothing Nothing

 動作テスト結果については、「第三研究所所長のブログ http://triss.blog93.fc2.com/」の「パソコン」カテゴリにて暫定公開中。

 *1 スロット形状は x8、接続は x4モード。

 *2 スロット形状は x8、接続は x1モード。

 このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
