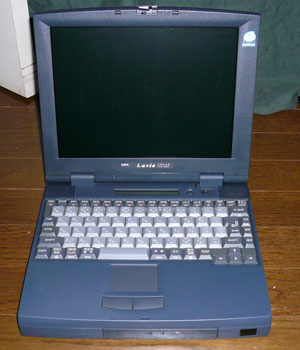

PC-9821Nr15/S10

  Normal Power UP
Name PC-9821Nr15/S10 PC-9821Nr150/S4PN
Mother Board Name NEC G8XWA
Chipset Intel 430MX (Mobile Triton)
Socket Nothing
Sys. Clock 60MHz 60MHz
PnP
(BIOS Rev.)
Support (0.18)
CPU Type Intel Pentium-150 (32bit, internal 64bit) Intel MMX Pentium-150 (32bit, internal 64bit) *
Operation Clock 150MHz 150MHz
1stCache 16KB 32KB
Coprocessor On Chip On Chip
Memory 2ndCache Volume 256KB
Maximum 256KB
Type Pipelined Burst SRAM
Volume 16MB 128MB
Maximum 128MB
Type 144 pin E.D.O. DRAM non E.C.C. SO-DIMM
LCD Display Type 12.1" TFT Type Backlight LCD
Color 18bit Colors
MAX Resolution 800 x 600 dots
Graphic Chip Trident Cyber9385
VRAM 2MB
Connection On Board PCI-Bus
Sound Chip YAMAHA YMF701 + YMF288
Type PCM, Enhanced/FM, PSG, Rhythm
MIDI Nothing Nothing
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus Card Bus #1 - - -
#2 - - -
Communication Slot Nothing NEC PC-9821NR-B06
Extend I/O Bus Nothing - -
98 Note Bay Nothing - -
Interface IDE Type Enhanced IDE Enhanced IDE
Connection On Board On Board
SCSI Type Nothing Nothing
Connection - -
RS-232C MAX Speed 115,200bps
Channel 1 Ch.
IrDA 1 Ch. (4Mbps)
LAN Type Nothing 100BASE-TX/10BASE-T
Connection - On Comm-Slot PCI
Graphic RGB (OUT), Video (OUT) RGB (OUT), Video (OUT)
Sound Line (IN, OUT), Phone, Mic Line (IN, OUT), Phone, Mic
Joystick (Sound Blaster Style x1) (Sound Blaster Style x1)
Others Tenkeyboard, Mouse, Printer, FDD Tenkeyboard, Mouse, Printer, FDD
Pointing Device 98 Slidepad
Drive FDD Nothing Nothing
HDD Enhanced IDE: (1.0GB) Enhanced IDE: MELCO DNR-4000 (4.0GB)
CD-ROM ATAPI: TEAC CD-48E (Speed x8) ATAPI: Toshiba XM-1502B (Speed x10)
Others FDD: 3.5"-2HD 3mode 1drive FDD: 3.5"-2HD 3mode 1drive
Display Nothing Nothing
Printer Nothing Nothing
Others Nothing Nothing

* ジャンクの PC-9821Nr150/X14F より CPUユニットと電源部のボードを移植。

 このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
