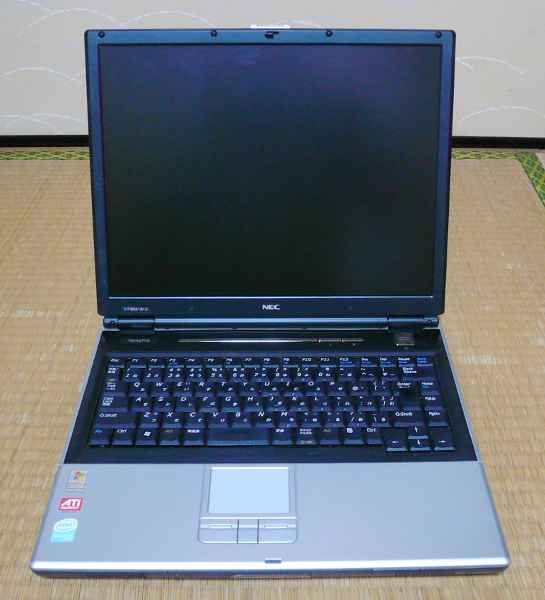

Name: PC-VY20A/W-3
Use: Experiment Note PC
| Normal | Power UP | ||||
|---|---|---|---|---|---|
| Name | PC-VY18M/W-3 | PC-VY20A/W-3 | |||
| Mother Board | Name | - | |||
| Chipset | ATI RADEON Xpress 1250 + IXP460 | ||||
| Socket | Socket M | ||||
| FSB Clock | 533MHz | 667MHz | |||
| Regulator | - | ||||
| VRM | On Board | ||||
| PCI Rev. | 2.3 | ||||
| PCI-Express Rev. | 1.1 | ||||
| PnP (BIOS Rev.) |
Support (-) | Support (-) | |||
| CPU ＃1, 2 (On Die) |
Type | Intel Celeron M 440 (64bit) | Intel Core2 Duo T7200 (64bit) | ||
| Operation Clock | 1.8GHz | 2.0GHz | |||
| 1stCache | 64KB | 64KB x2 | |||
| 2ndCache | 1MB (On die, Full Speed) | 4MB (On die, Full Speed) | |||
| Coprocessor | On Chip | On Chip | |||
| Memory | Volume | 1.3GB | 2.3GB | ||
| Maximum | 2.3GB | ||||
| Type | 200pin DDR2 SDRAM non E.C.C. DIMM (Dual Channel Support) | ||||
| Speed | DDR2 533/ PC2-4200 | DDR2 667/ PC2-5300 | |||
| LCD Display | Type | 15" TFT Type Backlight LCD | 15" TFT Type Backlight LCD | ||
| Color | 18bit Colors | 18bit Colors | |||
| MAX Resolution | 1024 x 768 dots (XGA) | 1440 x 1050 dots (SXGA+) | |||
| Graphic | Chip | ATI RADEON Xpress 1250 | |||
| VRAM | 64MB | ||||
| Connection | On Chip Set | ||||
| Sound | Chip | Realtek ALC262 | Realtek ALC262 | ||
| Type | PCM (2Ch) | PCM (2Ch) | |||
| MIDI | Nothing | Nothing | |||
| Modem | Name | Nothing | Nothing | ||
| MAX Speed | - | - | |||
| Extend Bus | Card Bus | ＃1 | - | - | - |
| ＃2 | - | - | - | ||
| Mini PCI Express Bus | - | - | - | ||
| Interface | SATA | Type | Serial-ATA | Serial-ATA | |
| Connection | On Board PCI Express | On Board PCI Express | |||
| RAID | Nothing | Nothing | |||
| IDE | Type | Nothing | Nothing | ||
| Connection | - | - | |||
| RAID | - | - | |||
| SCSI | Type | Nothing | Nothing | ||
| Connection | - | - | |||
| RS-232C | MAX Speed | 115.200bps | |||
| Channel | 1 Ch. | ||||
| LAN | Type | 1000BASE-T | |||
| Connection | On Board PCI Express | ||||
| Channel | 1 Ch. | ||||
| Graphic | RGB (OUT), S (OUT) | RGB (OUT), S (OUT) | |||
| Sound | LINE (IN, OUT), Phone, Mic | LINE (IN, OUT), Phone, Mic | |||
| Joystick | Nothing | Nothing | |||
| Others | Keyboard, Mouse, Pallalel, USB (2.0) x5 | Keyboard, Mouse, Pallalel, USB (2.0) x5 | |||
| Drive | FDD | 3.5"-2HD 3mode 1drive: NEC FD3238T | 3.5"-2HD 3mode 1drive: NEC FD3238T | ||
| HDD | Serial-ATAII: Toshiba MK8037GSX (80GB) | Serial-ATAII: Toshiba MK8037GSX (80GB) | |||
| CD-ROM | Nothing | Nothing | |||
| Others | DVD Combo: SATA, TEAC DW-224E | DVD Combo: SATA, TEAC DW-224E | |||
| Display | Nothing | Nothing | |||
| Printer | Nothing | Nothing | |||
| Others | Nothing | Nothing | |||
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
