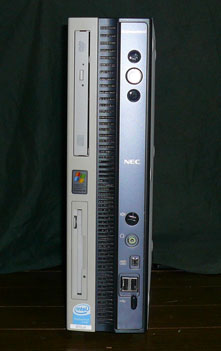

Express5800 51Lc

  Normal Power UP
Name N8100-8008A N8100-8008A
Mother Board Name MSI MS-7017N1
Chipset Intel 865G (Springdale) + ICH5
Socket Socket 478
FSB Clock 800MHz 800MHz
Regulator -
VRM On Board
PCI Rev. 2.2
PnP
(BIOS Rev.)		 Support (247A0700) Support (247A0700)
CPU Type Intel Pentium4-3E (32bit, Internal 64bit) Intel Pentium4-3E (32bit, Internal 64bit)
Operation Clock 3.0GHz 3.0GHz
1stCache 12kμOPs + 16KB 12kμOPs + 16KB
2ndCache 1MB (On die, Full Speed) 1MB (On Die, Full Speed)
Coprocessor On Chip On Chip
Memory Volume 512MB 1GB
Maximum 1GB 2GB
Type 184pin DDR SDRAM Non ECC DIMM
Speed DDR400/ PC3200 DDR400/ PC3200
Graphic Chip Intel MGA Nvidia GeForce6200A
VRAM 64MB (Max.) 128MB
Connection On Chip On AGP-Bus (x8 mode)
Sound Chip ADI AD1981B ADI AD1981B
Type PCM (AC'97 2.2) PCM (AC'97 2.2)
MIDI Sound MAX (XG, GM) Sound MAX (XG, GM)
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus AGP-Bus
(x8 Support)		 - Kurouto Shikou GF6200A-LA128H
PCI-Bus ＃1 - - -
＃2 - - -
Interface IDE Type Ultra-ATA/100 Ultra-ATA/100
Connection On Board PCI-Bus On Board PCI-Bus
RAID - -
SCSI Type Nothing Nothing
Connection - -
RS-232C MAX Speed 115.200bps
Channel 1 Ch.
LAN Type 1000BASE-T
Connection On Board PCI-Bus
Channel 1 Ch.
Graphic RGB (OUT) RGB (OUT), Digital-DVI (OUT), HDTV (OUT),
S/Video (OUT)
Sound LINE (IN, OUT), Phone, Mic LINE (IN, OUT), Phone, Mic
Joystick Nothing Nothing
Others Keyboard, Mouse, Pallalel, USB (2.0) x4, IEEE-1394a x1 Keyboard, Mouse, Pallalel, USB (2.0) x4, IEEE-1394a x1
Drive FDD 3.5"-2HD 3mode 1drive: Mitsumi D353F3-3213 3.5"-2HD 3mode 1drive: Mitsumi D353F3-3213
HDD Ultra ATA/133: Seagate ST380815AS (80GB) Ultra ATA/133: Seagate ST380815AS (80GB)
CD-ROM Nothing Nothing
Others DVD-Conbo: ATAPI, Matsushita UJDA-770 DVD-Conbo:: ATAPI, Matsushita UJDA-770
Display - Nothing
Printer Nothing Nothing
Others Nothing Nothing

　このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
