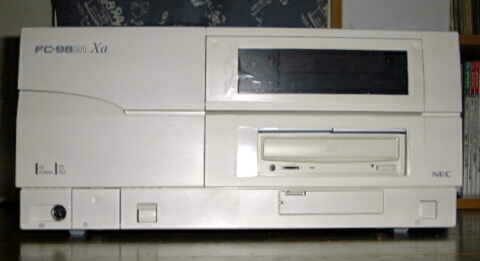

FC-9821Xa model1

  Normal Power UP
Name FC-9821Xa model 1 FC-9821XaIII40/K43 Expert
Mother Board Name NEC PX-9821Xa13/K Compatible
Socket Chipset VLSI Supercore594 (Wildcat) + Star Alpha 2
Socket Socket 5 Socket 5
Sys. Clock 66MHz 66MHz
Regulator - MELCO HK6-MS400-N2
VRM -
PCI Rev. 2.0
PnP
(BIOS Rev.)
Support (0.03)
CPU Type Intel Pentium-133 (32bit, Internal 64bit) AMD K6-III 400 (32bit, Internal 64bit)
Operation Clock 133MHz 400MHz
1stCache 16KB 64KB
Coprocessor On Chip On Chip
Memory 2ndCache Volume 256KB 256KB (On die)
Maximum 512KB 256KB
Type Burst SRAM Full Speed Backside Cache
3rdCache Volume No support 512KB
Maximum - 512KB
Type - Burst SRAM
Volume 16MB 128MB
Maximum 128MB
Type 72pin F.P. DRAM Non Parity SIMM
Graphic Chip Trident TGUI9682XGi 3Dfx Voodoo Banshee
VRAM 2MB 16MB
Connection On board PCI-Bus On PCI-Bus
Sound Chip Nothing YAMAHA YMF288 + Crystal CS4231
Type - PCM, FM, PSG, Rhythm, Noise
MIDI Nothing CREATIVE Wave Blaster (GM, MT-32)
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus C-Bus #1/RAS - NEC Home Elec. PC-FXGA
#2 - ELECOM FDB-1MF
#3 - NEC PC-9821XA-E01
#4   Q-Vision
CREATIVE
Wave Star
Wave Blaster
#5   CONTEC C-NET(98)P2-52T
#6   NEC PC-9801-90
PCI-Bus #1 - Adaptec AHA-2940UWJ
#2 - MELCO WGP-FX16N
PC Card #1 - - -
#2 - - -
Interface IDE Type Enhanced IDE Enhanced IDE
Connection On Board On Board
SCSI Type Nothing Ultra Wide SCSI (Busmaster)
Connection - On PCI-Bus
RS-232C MAX Speed 115,000bps 115,000bps
Channel 1 Ch 2 Ch
LAN Type Nothing 10BASE-T/5/2
Connection - On C-Bus
Channel - 1 Ch.
Graphic RGB (OUT) RGB (IN, OUT), Video/S (IN), PC-FX (OUT)
Sound Nothing LINE (IN, OUT), Phone, Mic, MIDI, PC-FX (OUT)
Joystick Nothing Sound Blaster Style x1,
PC-FX Style x2
Others Keyboard, Mouse, Printer,
Power (Status, Control)
Keyboard, Mouse, Printer,
Power (Status, Control), 1MB FDD I/F
Drive FDD 3.5"-2HD 3mode 1drive: NEC FD1231T 3.5"-2HD 3mode 1drive: NEC FD1231T
HDD Nothing Ultra SCSI: IBM DCAS-34330 (4.3GB)
CD-ROM Nothing Fast SCSI: TEAC CD-532SB (Speed x32)
Others Nothing Nothing
Display Nothing Nothing
Printer Nothing Nothing
Others Nothing Nothing

 このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
