Normal | Power UP | ||||
---|---|---|---|---|---|

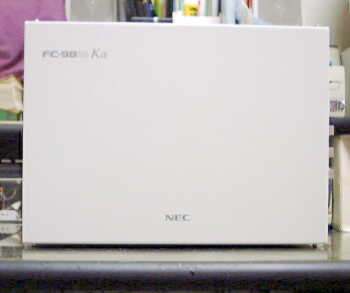

Name | FC-9821Ka model2 | FC-9821Ka233/W32 Expert | |||
Mother Board | Name | NEC PC-9821Xa16/W Compatible | |||
Chipset | Intel 430HX (Triton II) + Star Alpha 2 | ||||
Socket | Socket 7 | Socket 7 | |||
Sys. Clock | 66MHz | 66MHz | |||
Regulator | - | - | |||
VRM | MURATA PUD-70 | DELTA P55C 2.8V | |||
PCI Rev. | 2.0 | ||||
PnP (BIOS Rev.) | Support (0.12) | ||||
CPU | Type | Intel Pentium-166 (32bit, Internal 64bit) | intel MMX Pentium-233 (32bit, Internal 64bit) * | ||
Operation Clock | 166MHz | 233MHz | |||
1stCache | 16KB | 32KB | |||
Coprocessor | On Chip | On Chip | |||
Memory | 2ndCache | Volume | 256KB | 512KB | |
Maximum | 512KB | 512KB | |||
Type | Pipelined Burst SRAM | Pipelined Burst SRAM | |||
3rdCache | Volume | No support | No support | ||
Maximum | - | - | |||
Type | - | - | |||
Volume | 32MB | 256MB | |||
Maximum | 128MB | 256MB | |||
Type | 72pin E.D.O. DRAM with E.C.C. SIMM | 72pin F.P. DRAM with Parity SIMM | |||
Graphic | Chip | Trident TGUI9682XGi | 3D Labs PARMEDIA2H | ||
VRAM | 2MB | 8MB | |||
Connection | On sub board PCI-Bus | On PCI-Bus | |||
Sound | Chip | Nothing | YAMAHA YMF297 + Crystal CS4231 | ||
Type | Nothing | PCM, Enhanced/FM, PSG, Rhythm | |||
MIDI | Nothing | DIAMOND Monster MIDI (GS, GM) | |||
Modem | Name | Nothing | Nothing | ||
MAX Speed | - | - | |||
Extend Bus | C-Bus | #1/RAS | - | I-O DATA | RSA-98III/S |
#2 | - | NEC DIAMOND |
PC-9801-118 Monster MIDI |
||
#3 | - | Logitec | LHA-301A | ||
#4 | - | - | - | ||
#5/FDD | NEC | FC-9801-FD4R | |||
PCI-Bus | #1 | - | I-O DATA | GA-PIIH8/PCI | |
#2 | - | Chousensya | UIDE-133/98-A | ||
Interface | IDE | Type | Enhanced IDE | Ultra DMA/133 (Busmaster) | |
Connection | On Board | On PCI-Bus | |||
SCSI | Type | Nothing | Fast SCSI (SMIT) | ||
Connection | - | On C-Bus | |||
RS-232C | MAX Speed | 115,000bps | 921,000bps | ||
Channel | 2 Ch. | 3 Ch. | |||
LAN | Type | 100BASE-TX/ 10BASE-T | 100BASE-TX/ 10BASE-T | ||
Connection | On board PCI-Bus | On board PCI-Bus | |||
Channel | 1 Ch. | 1 Ch. | |||
Graphic | RGB (IN, OUT) | RGB (IN, OUT), Video/S (OUT) | |||
Sound | Nothing | LINE (IN, OUT), Phone, Mic, MIDI | |||
Joystick | Nothing | Sound Blaster Style x1 | |||
Others | Keyboard, Mouse, Printer, Power (Status, Control) |
Keyboard, Mouse, Printer, Power (Status, Control), 1MB FDD I/F |
|||
Drive | FDD | Nothing | 3.5"-2HD 2mode 1drive: FC-9801-FD4R | ||
HDD | Nothing | Enhanced IDE: Quantum Fireball-ST 3.2A (3.2GB) | |||
CD-ROM | Nothing | Nothing | |||
Others | Nothing | Nothing | |||
Display | Nothing | Nothing | |||
Printer | Nothing | Nothing | |||
Others | Nothing | Nothing |
* CPUのピンを改造し、3.5倍固定とした物
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
