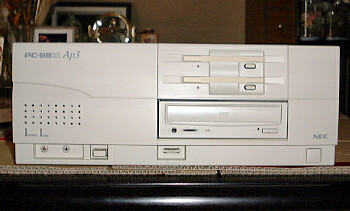

NEC PC-9821Ap3/C8W

  Normal Power UP
Name PC-9821Ap3/C8W PC-9821ApIII8/W9-P AV
Mother Board Name NEC G8SPM
Chipset NEC Custom
Socket Socket 6 Socket 6 (add 1pin) *
Sys. Clock 33MHz 33MHz
Regulator - On Chip
VRM -
PnP
(BIOS Rev.)
Support (0.09)
CPU Type Intel iDX4-100 (32bit) Intel PODP5V83S (32bit, Internal 64bit)
Operation Clock 100MHz 83MHz
1stCache 16KB 32KB (Write Back)
Coprocessor On Chip On Chip
Memory 2ndCache Volume 128KB 256KB
Maximum 256KB
Type Anti Synchronous SRAM
Volume 8MB 128MB
Maximum 128MB
Type 72pin F.P. DRAM with Parity SIMM
Graphic Chip S3 86C864 (Vision864) S3 86C864 (Vision864)
VRAM 2MB 2MB
Connection On Board ML-Bus On Board ML-Bus
Sound Chip YAMAHA YM2608B YAMAHA YM2608B
Type PCM, FM, PSG, Rhythm, Noise PCM, FM, PSG, Rhythm, Noise
MIDI Nothing Nothing
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus C-Bus #1 - Roland MPU-PC98II
#2 - I-O DATA
I-O DATA
ET/T-98
RSA-98IIISB
ML/C-Bus #3 - ICM IF-2769
#4 - NEC PC-9821A-E08
SCSI Bus - MIDORI. ELEC. MDC-FA001
Interface IDE Type Enhanced IDE Enhanced IDE (Ultra SMIT)
Connection On Board On Board
SCSI Type Nothing Fast SCSI (S-Bus Master)
Connection Nothing On C Bus
RS-232C MAX Speed 19,200bps 921,000bps
Channel 1 Ch. 2 Ch.
LAN Type Nothing 10BASE-T
Connection - On C-Bus
Graphic RGB (OUT) RGB (OUT), Video/S (IN)
Sound LINE (IN, OUT), Phone, Mic LINE (OUT), Mic, MIDI (IN, OUT, THRU)
Joystick Nothing ATARI Style x1 (PC-98DO/P-11)
Others Keyboard, Mouse, Printer Keyboard, Mouse,Printer, i-Connect
Drive FDD 3.5"-2HD 3mode 1drive: NEC FD1148T 3.5"-2HD 3mode 2drives: NEC FD1148T
HDD IDE: Conner CFA340A (340MB) IDE: Conner CFA540A (540MB)
CD-ROM ATAPI: NEC PC-CD60D (Speed x2) ATAPI: SONY CDU-311 (Speed x8)
Others Nothing Nothing
Display Nothing Nothing
Printer Nothing Nothing
Others Nothing Nothing
Others Nothing Nothing

* CPUソケットに PODP5V83を載せるため、1ピン分穴をあけています。

 このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
