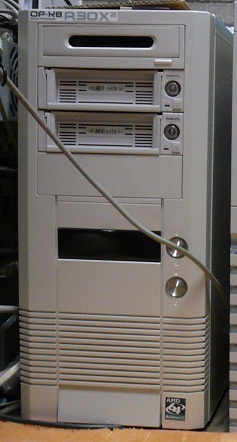

OP-K8 R30X Double

  Normal Power UP
Name - OP-K8/R30X2 Super++ *1
Mother Board Name ASUSTeK A8N-SLI Premium
Chipset NVIDIA nForce4 SLI
Socket Socket 939
Sys. Clock 200〜400MHz 200MHz
Regulator -
VRM On Board
PCI Rev. 2.3
PCI-Express Rev. 1.1
PnP
(BIOS Rev.)
Support (1005) Support (1009)
CPU #1 Type Nothing AMD Athlon64 X2 4400+ (64bit)
Operation Clock - 2.2GHz
1stCache - 128KB
2ndCache - 1MB (On die, Full Speed)
Coprocessor - On Chip
CPU #2
(On Die)
Type Nothing AMD Athlon64 X2 4400+ (64bit)
Operation Clock - 2.2GHz
1stCache - 128KB
2ndCache - 1MB (On die, Full Speed)
Coprocessor - On Chip
Memory Volume Nothing 2GB
Maximum 4GB 4GB
Type 184pin DDR SDRAM  non ECC DIMM (Dual Channel support)
Speed DDR 400/ PC-3200
Graphic Chip Nothing Nvidia GeForce7900GTX
VRAM - 512MB
Connection - On PCI-Express x16 Bus
Sound Chip Realtek ALC850 Creative M. CA20K2 (Xtreme Fidelity)
Type PCM (7.1Ch) PCM (7.1 Ch)
MIDI Nothing Creative M. X-Fi (GM, MT-32)
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus PCI-Express
Bus
#1 (x16) - Galaxy GF7900GTX/512D3/DVI
#2 (x16) - ASUSTeK Joystick/ USB 2.0 x2
#3 (x4) - ASUSTeK RS-232C x1
#4 (x1) - Creative Media SPD/IF (IN, OUT)
PCI-Bus #1 - Kurouto Shikou NO-PCI /Pro *2
#2 - Canopus MTVX2004HF
#3 - Creative Media Sound BLASTER X-Fi DA /Pro *3
Interface SATA Type Serial-ATAII Serial-ATAII
Connection On Board PCI-Bus On Board PCI-Bus
RAID Support Support
IDE Type Ultra-ATA/133 Ultra-ATA/133
Connection On Board PCI-Bus On Board PCI-Bus
RAID Support Support
SCSI Type Nothing Nothing
Connection - -
RS-232C MAX Speed 115.200bps
Channel 1 Ch.
LAN Type 1000BASE-T
Connection On Board PCI-Bus
Channel 2 Ch.
Graphic Nothing Digital (DVI) x2, Video/S (IN, OUT), HDTV (IN, OUT)
Sound LINE (IN, OUT x2), Phone, Mic, SP/DIF (IN, OUT) LINE (IN, OUT), Phone, Mic, SP/DIF (IN, OUT), Digital (IN, OUT)
Joystick Sound Blaster Style x1 Sound Blaster Style x1
Others Keyboard, Mouse, Pallalel, USB (2.0) x4, IEEE-1394a x1 Keyboard, Mouse, Pallalel, USB (2.0) x8, IEEE-1394a x2, RF
Drive FDD Nothing 3.5"-2HD 3mode 1drive: NEC FD1231T *4
HDD Nothing Serial-ATAII:HGST HDT722516DLA380 (160GB)
Serial-ATAII:HGST HDT722525DLA380 (250GB)
Serial-ATAII:HGST HDS728080PLA380 (80GB)
CD-ROM Nothing Nothing
Others Nothing DVD-RAM/Multi: ATAPI, Pioneer DR-112L
DVD-RAM/Multi: i-LINK, Panasonic SW-9574C *5
PC Case Type Nothing ATX Mini Tower
Name - Owltech OWL-PCC9 (Cloud 9)
Power Supply Nothing EVERGREEN LW-6550H-4 (550W)
Display Nothing Hyundai W241DG (24.1" Wide S-IPS)
Printer Nothing Nothing
Others Nothing Keyboard: NEC PC-VP-KB07 (PS/2)
Mouse: ELECOM M-WUP2CRSV (PS/2)

 *1 「X2、または、X^2」の部分は、Xダブルと読みます。某社のハイレゾマシンと一緒。(^ ^;;

 *2 改造品。OSコン、積層セラミックコンデンサを追加。コンデンサを、ホットボンドで固定したもの。

 *3 改造品。電解コンデンサを、ELNA シルミックシリーズと、三洋 OSコンに交換したもの。

 *4 改造品。PC98-NX取り外し品 (楕円ボタン) のベゼル、上蓋金具を、FD-1231Hの物と交換。

 *5 玄人志向 IEEE1394-DAT経由の IEEE-1394接続。筐体は、YAMAHA CRW8424SXを利用。

 このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
