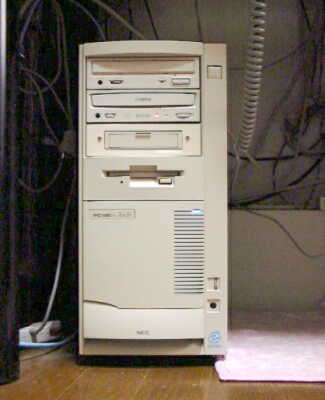

PC-9821Xv20/W30

  Normal Power UP
Name PC-9821Xv20/W30 PC-9821XvIII60/M366 AV
Mother Board Name NEC G8WTH
Chipset Intel 430HX (Triton II)
Socket Socket 7 Socket 7
Sys. Clock 66MHz 66MHz
Regulator - MELCO HK6-MS-NV4
VRM MURATA PUD-70 MURATA PUD-70
PCI Rev. 2.0
PnP
(BIOS Rev.)		 Support (0.08)
CPU Type Intel Pentium-200 (32bit, Internal 64bit) AMD K6-IIIE+ 550 (32bit, Internal 64bit)
Operation Clock Operation Clock 200MHz 600MHz
1stCache 16KB 64KB
Coprocessor On Chip On Chip
Memory 2ndCache Volume 256KB 256KB (On die)
Maximum 512KB 256KB
Type Pipelined Burst SRAM Full Speed Backside Cache
3rdCache Volume No support Nothing
Maximum - 512KB
Type - Pipelined Burst SRAM
Volume 32MB 512MB
Maximum 256MB 512MB
Type 72pin E.D.O. DRAM with E.C.C. SIMM
Graphic Chip Matrox MGA-2064W (Millennium) S3 Savage2000
VRAM 4MB 32MB
Connection On PCI-Bus On PCI-Bus
Sound Chip Crystal CS4231 YAMAHA YMF744 + Crystal CS4231
Type PCM PCM (4ch), PCM, Enhanced FM
MIDI Nothing HOONTECH 744 DIGITAL-XG (XG, GM, MT-32)
Modem Name Nothing I-O DATA DFML-560
MAX Speed - 56,000bps (K56flex, V90)
Extend Bus C-Bus ＃1 - Kurouto Shikou
Justy		 CBUS-HENKAN
DSCVSF
＃2 - NEC PC-9821XA-E01
＃3 - I-O DATA IF-SEGA/98
＃4 - EPSON GT40SPIF
PCI-Bus ＃1 Matrox Millennium I-O DATA GA-SV2K32/PCI
＃2 - JBS PCI-EB-4F
＃3 - I-O DATA SC-U2PS
＃EX1 Nothing I-O DATA GV-BCTV4/PCI
＃EX2 - I-O DATA USB2-PCI
＃EX3 - HOONTECH 744 DIGITAL-XG
＃EX4 - Kurouto Shikou IEEE1394V2-PCI
PC Card ＃1 Nothing ADTEC AD-SMADP
＃2 - - -
Interface IDE Type Enhanced IDE Enhanced IDE
Connection On Board PCI-Bus On Board PCI-Bus
RAID - -
SCSI Type Ultra SCSI (Busmaster) Ultra2 Wide/ Ultra SCSI (Busmaster)
Connection On Board PCI-Bus On PCI-Bus, On Board PCI-Bus
RS-232C MAX Speed 115.200bps
Channel 2 Ch.
LAN Type 100BASE-TX/10BASE-T
Connection On Board PCI-Bus
Channel 1 Ch.
Graphic RGB (IN, OUT) RGB (IN, OUT), Video/S (OUT)
Sound LINE (IN, OUT), Phone, Mic LINE (IN, OUT), Phone, Mic, MIDI
Joystick Nothing Sound Blaster Style x1,
SEGA Saturn Style x2
Others Keyboard, Mouse, Printer Keyboard, Mouse, Printer, Parallel I/F,
USB (2.0) x4, IEEE-1394 x4
Drive FDD 3.5"-2HD 3mode 1drive: NEC FD1231T 3.5"-2HD 3mode 2drives: NEC FD1231T
HDD Enhanced IDE: IBM DAQA-33240 (3.2GB) Ultra2 Wide SCSI: Quantum AtlasV 18L (18.3GB)
Ultra2 Wide SCSI: IBM DNES-318350W (18.3GB)
CD-ROM ATAPI: Matsushita CR-583 (Speed x8) Ultra SCSI: Pioneer DR-966 (Speed x40)
Others Nothing 3.5"MO:Fast SCSI, KONICA OMD-7061 (640MB)
Display Nothing NEC JC-1578VM
Printer Nothing Canon BJC-430J
Others Nothing Scanner: EPSON GT-6000 (Parallel I/F)
Scanner: Canon BJC-430J + IS-22 (LPT1)
Artpad: WACOM ArtPad II (RS-232C)
Speaker: NEC PC-SP103

　このスペックは、「第三研究所」に所属する機体について紹介しています。公式のスペックとは異なる場合があります。
