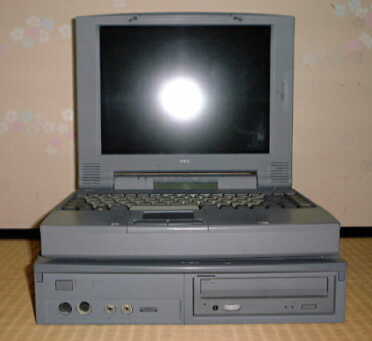

PC-9821Na13/H10 + PC-9821N-U05 ドッキングステーション CD

  Normal Power UP
Name PC-9821Na13/H10 PC-9821Ta13/H7N AV
Mother Board Name NEC G8XGG
Chipset Intel 430MX (Mobile Triton)
Socket Nothing
Sys. Clock 66MHz 66MHz
PnP
(BIOS Rev.)		 Support (0.10)
CPU Type Intel Pentium-133 (32bit, internal 64bit) Intel Pentium-133 (32bit, internal 64bit)
Operation Clock 133MHz 133MHz
1stCache 16KB 16KB
Coprocessor On Chip On Chip
Memory 2ndCache Volume 256KB
Maximum 256KB
Type Pipelined Burst SRAM
Volume 16MB 80MB
Maximum 80MB
Type F.P. DRAM with Parity Module
LCD Display Type 12.1" TFT Type Backlight LCD
Color 18bit Colors
MAX Resolution 800 x 600 dots
Graphic Chip Cirrus Logic GD7548
VRAM 1MB
Connection On Board PCI-Bus
Sound Chip YAMAHA YMF297 + Crystal CS4231 YAMAHA YMF262 + YMF297 + Crystal CS4231
Type PCM, Enhanced/FM, PSG, Rhythm PCM, Enhanced/FM, PSG, Rhythm
MIDI Nothing IBM Aptiva S-W1/C (GM, MT-32)
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus PC CARD #1 - MELCO LPC3-TX
#2 - - -
Extend I/O Bus 198pin Type NEC PC-9821N-U05
C Bus Nothing CREATIVE
IBM		 SoundBlaster16/98
Aptiva S-W1/C
98 Note Bay NEC PC-9821N-P04 (FDD) NEC PC-9821N-P04
Interface IDE Type Enhanced IDE Enhanced IDE
Connection On Board On Board
SCSI Type Nothing SCSI-1 (CPU Transfer)
Connection - Extend I/O Bus
RS-232C MAX Speed 115,200bps
Channel 1 Ch.
IrDA 1 Ch.
LAN Type Nothing 100BASE-TX/10BASE-T
LAN - On PCMCIA Slot
Graphic RGB (OUT) RGB (OUT)
Sound Line (IN, OUT), Phone, Mic (Internal) MIDI, Line (IN, OUT), Phone, Mic
Joystick (Sound Blaster Style x1) Sound Blaster Style x1
Others Tenkeyboard, Mouse, Printer Keyboard, Mouse, Printer
Pointing Device 98 Slidepad
Drive FDD 3.5"-2HD 3mode 1drive 3.5"-2HD 3mode 1drive
HDD Enhanced IDE: DSOA-31080 (1.0GB) Enhanced IDE: IBM DBOA-2720 (720MB)
CD-ROM ATAPI: NEC PC-9821NA-C04 (Speed x4) ATAPI: NEC PC-9821NA-C04 (Speed x4)
Fast SCSI: TOSHIBA XM-5701B (Speed x12)
Others Nothing Nothing
Display Nothing Nothing
Printer Nothing Nothing
Others Nothing Tenkeyboard: NEC PC-9801N-23
PC-Card Pack: NEC PC-9821N-P02
TV Tuner Pack: NEC PC-9821N-P03
2nd BATT.: NEC PC-9821NA-C02

　このスペックは「第三研究所」が所有していた機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
