Normal | Power UP | ||||
---|---|---|---|---|---|

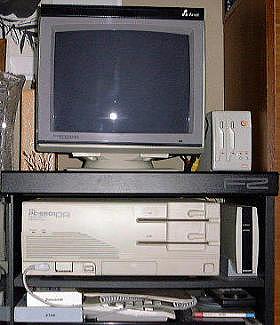

Name | PC-9801DA2 | PC-9801Da/M12TL Pro | |||
Mother Board | Name | NEC G8HRC | |||
Chipset | NEC Custom | ||||
Socket | 132pin i386 Socket | 132pin i386 Socket | |||
Sys. Clock | 16/20MHz | 20MHz | |||
Regulator | - | - | |||
VRM | - | ||||
PnP (BIOS Rev.) |
No Support (?) | ||||
CPU | Type | Intel i386-20 (32bit) | Intel i386-20 (32bit) | ||
Operation Clock | 20MHz | 20MHz | |||
1stCache | Nothing | Nothing | |||
Coprocessor | Nothing | Intel i387DX-20 20MHz (32bit) | |||
Memory | 2ndCache | Volume | - | - | |
Maximum | - | - | |||
Type | - | - | |||
Volume | 1.6MB | 13.6MB | |||
Maximum | 14.6MB | 14.6MB | |||
Type | 72pin DRAM non Parity SIMM | 72pin DRAM non Parity SIMM | |||
Graphic | Chip | NEC Custom (EGC) | Trident TGUI9680XGi | ||
VRAM | 256KB | 4MB | |||
Connection | On Board | On C-Bus | |||
Sound | Chip | YAMAHA YM2203 | YAMAHA YM2608B | ||
Type | FM, PSG, Noise | PCM, FM, PSG, Rhythm, Noise | |||
MIDI | Nothing | Nothing | |||
Modem | Name | Nothing | Nothing | ||
MAX Speed | - | - | |||
Extend Bus | C-Bus | #1 | - | I-O DATA I-O DATA |
SC-98IIIP Plus RSA-98SB |
#2 | - | I-O DATA | GV-98X | ||
#3 | - | I-O DATA I-O DATA |
GA-DRV4/98 LA-T/98SB |
||
#4 | - | NEC | PC-9801-86 | ||
Interface | IDE | Type | Nothing | Nothing | |
Connection | - | - | |||
SCSI | Type | Nothing | Fast SCSI (SMIT) | ||
Connection | - | On C-Bus | |||
RS-232C | MAX Speed | 19,200bps | 115,000bps | ||
Channel | 1 Ch. | 2 Ch. | |||
LAN | Type | Nothing | 10BASE-T | ||
Connection | - | On C-Bus | |||
Graphic | RGB (Analog, Digital) | RGB (Analog, Digital), Video/S (IN) | |||
Sound | LINE (OUT) | LINE (IN, OUT), Phone, Mic | |||
Joystick | Nothing | ATARI Style x1 | |||
Others | Keyboard, Mouse, Printer, 1MB FDD I/F | Keyboard, Mouse, Printer, 1MB FDD I/F | |||
Drive | FDD | 5"-2HD 2mode 2drives: NEC FD1155D | 5"-2HD 2mode 2drives: NEC FD1155D 3.5"-2HD 2mode 2drives: Logitec LFD-382F2 |
||
HDD | Nothing | Fast SCSI: Quantum Fireball 1280S (1.2GB) | |||
CD-ROM | Nothing | Nothing | |||
Others | Nothing | Nothing | |||
Display | Nothing | Nothing | |||
Printer | Nothing | Nothing | |||
Others | Nothing | Nothing |
* SC-98IIIPに、 50pinフラットケーブル接続用コネクタを付けたもの。
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
