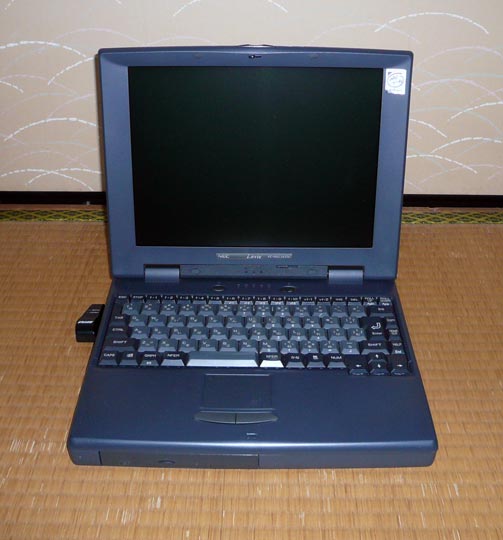

PC-9821Nw150/S20 modelD

  Normal Power UP
Name PC-9821Nw150/S20D PC-9821Nw150/S20D
Mother Board Name NEC G8YXB
Chipset Intel 430TX (Triton TX)
Socket Nothing
Sys. Clock 60MHz 60MHz
PnP
(BIOS Rev.)
Support (0.09)
CPU Type Intel MMX Pentium-150 (32bit, internal 64bit) Intel MMX Pentium-150 (32bit, internal 64bit)
Operation Clock 150MHz 150MHz
1stCache 32KB 32KB
Coprocessor On Chip On Chip
Memory 2ndCache Volume 256KB
Maximum 256KB
Type Pipelined Burst SRAM
Volume 32MB 64MB
Maximum 128MB 256MB
Type 144 pin E.D.O. DRAM non E.C.C. SO-DIMM
LCD Display Type 12.1" TFT Type Backlight LCD
Color 18bit Colors
MAX Resolution 800 x 600 dots
Graphic Chip Trident Cyber9385-1
VRAM 2MB
Connection On Board PCI-Bus
Sound Chip YAMAHA YMF297 + Crystal CS4231
Type PCM, Enhanced/FM, PSG, Rhythm
MIDI Nothing Nothing
Modem Name Nothing NEC PC-9821NR-B05
MAX Speed - 33,600bps (V.34)
Extend Bus Card Bus #1 - - -
#2 - - -
Communication Slot NEC PC-9821NR-B05 NEC PC-9821NR-B05
Extend I/O Bus Nothing - -
98 Note Bay Nothing - -
Interface IDE Type Enhanced IDE Enhanced IDE
Connection On Board On Board
SCSI Type Nothing -
Connection - -
RS-232C MAX Speed 115,200bps
Channel 1 Ch.
IrDA 1 Ch. (4Mbps)
LAN Type Nothing Nothing
Connection - -
Graphic RGB (OUT), Video (OUT) RGB (OUT), Video (OUT)
Sound Line (IN), Phone, Mic (Internal) Line (IN), Phone, Mic (Internal)
Joystick (Sound Blaster Style x1) (Sound Blaster Style x1)
Others Tenkeyboard, Mouse, Printer Tenkeyboard, Mouse, Printer
Pointing Device 98 Slidepad
Drive FDD 3.5"-2HD 3mode 1drive 3.5"-2HD 3mode 1drive
HDD Enhanced IDE: Toshiba MK2104MAV (2.1GB) Enhanced IDE: Toshiba MK2104MAV (2.1GB)
CD-ROM ATAPI: (Speed x16) ATAPI: (Speed x16)
Others Nothing Nothing
Display Nothing Nothing
Printer Nothing Nothing
Others Nothing Nothing

 このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
