Normal | Power UP | ||||
---|---|---|---|---|---|

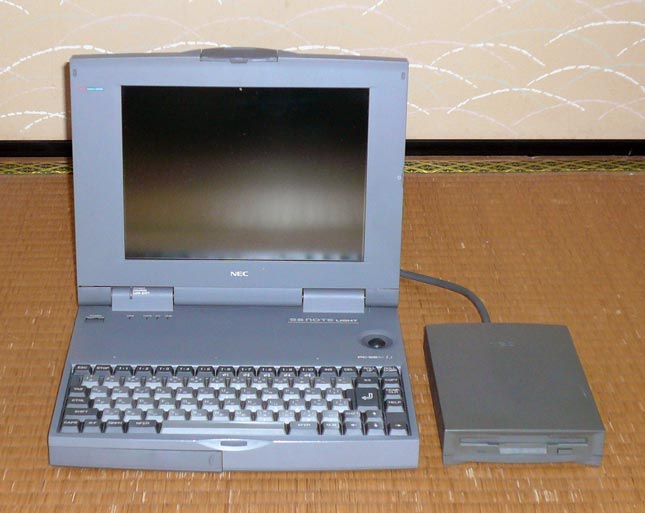

Name | PC-9821Lt/540A | PC-9821Lt/13A | |||
Mother Board | Name | NEC G8TPZ | |||
Chipset | NEC Custom (PC-9821Lt) | ||||
Socket | Nothing | ||||
Sys. Clock | 25MHz | 25MHz | |||
PnP (BIOS Rev.) |
Support (-) | ||||
CPU | Type | Intel iDX2-50 (32bit) | Intel iDX2-50 (32bit) | ||
Operation Clock | 50MHz | 50MHz | |||
1stCache | 8KB | 8KB | |||
Coprocessor | On Chip | On Chip | |||
Memory | 2ndCache | Volume | Nothing | ||
Maximum | - | ||||
Type | - | ||||
Volume | 7.6MB | 19.6MB | |||
Maximum | 35.6MB | ||||
Type | F.P. DRAM with Parity Module | ||||
LCD Display | Type | 9.5" TFT Type Backlight LCD | |||
Color | 256 Colors | ||||
MAX Resolution | 640 x 480 dots | ||||
Graphic | Chip | NEC Custom | |||
VRAM | 512KB | ||||
Connection | On Board ML-Bus | ||||
Sound | Chip | Nothing | Nothing | ||
Type | Nothing | Nothing | |||
MIDI | Nothing | Nothing | |||
Modem | Name | Nothing | Nothing | ||
MAX Speed | - | - | |||
Extend Bus | PC CARD | #1 | - | NEC | PC-9801N-J02 |
#2 | - | - | - | ||
Interface | IDE | Type | Enhanced IDE | Enhanced IDE | |
Connection | On Board | On Board | |||
SCSI | Type | Nothing | - | ||
Connection | - | - | |||
RS-232C | MAX Speed | 19,200bps | |||
Channel | 1 Ch. | ||||
IrDA | Nothing | ||||
LAN | Type | Nothing | 10BASE-T | ||
LAN | - | On PCMCIA Slot | |||
Graphic | RGB (OUT) | RGB (OUT) | |||
Sound | Nothing | Nothing | |||
Joystick | Nothing | Nothing | |||
Others | Mouse, Printer, FDD I/F | Mouse, Printer, FDD I/F | |||
Pointing Device | Thumb Ball | ||||
Drive | FDD | 3.5"-2HD 3mode 1drive, NEC FD1139C | 3.5"-2HD 3mode 1drive, NEC FD1139C | ||
HDD | Enhanced IDE: (540MB) | Enhanced IDE: Toshiba MK1301MAV (1.3GB) | |||
CD-ROM | Nothing | Nothing | |||
Others | RAM Drive: 1.25MB 1drive | RAM Drive: 1.25MB 1drive | |||
Display | Nothing | Nothing | |||
Printer | Nothing | Nothing | |||
Others | Nothing | Nothing |
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
