Normal | Power UP | ||||
---|---|---|---|---|---|

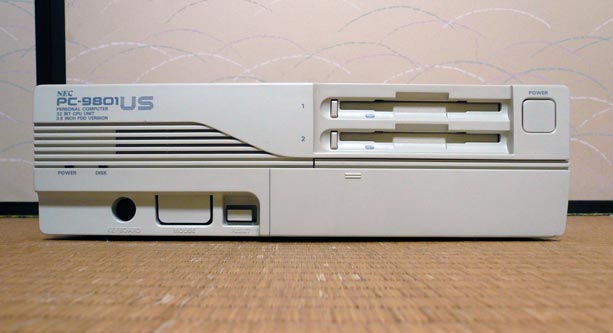

Name | PC-9801US | PC-9801US | |||
Mother Board | Name | NEC G8LRH | |||
Chipset | NEC Custom | ||||
Socket | Nothing | - | |||
Sys. Clock | 16MHz | 16MHz | |||
Regulator | - | Aset Core Viper P-28r | |||
VRM | - | ||||
PnP (BIOS Rev.) |
No Support (?) | ||||
CPU | Type | intel i386SX-16 (16bit, Internal 32bit) | Texas Instruments TI486SXLC2-40 (16bit, Internal 32bit) |
||
Operation Clock | 16MHz | 32MHz | |||
1stCache | No Support | 8KB (Write Back) | |||
Coprocessor | Nothing | Cyrix Cx83S87-33 16MHz (32bit, Internal 16bit) |
|||
Memory | 2ndCache | Volume | - | - | |
Maximum | - | - | |||
Type | - | - | |||
Volume | 1.6MB | 7.6MB | |||
Maximum | 14.6MB | 14.6MB | |||
Type | DRAM non Parity Module (Memory Card Slot and C-Bus) | ||||
Graphic | Chip | NEC Custom (EGC) | NEC Custom (EGC) | ||
VRAM | 256KB | 256KB | |||
Connection | On Board | On Board | |||
Sound | Chip | YAMAHA YM2203C | YAMAHA YM2203C | ||
Type | FM, PSG, Noise | FM, PSG, Noise | |||
MIDI | Nothing | Nothing | |||
Modem | Name | Nothing | Nothing | ||
MAX Speed | - | - | |||
Extend Bus | C-Bus | #1 | - | I-O DATA | PC34F-4M |
#2 | - | - | - | ||
Memory Card Slot | - | - | - | Interface | IDE | Type | Nothing | - |
Connection | - | - | |||
SCSI | Type | Nothing | - | ||
Connection | - | - | |||
RS-232C | MAX Speed | 19,200bps | 19,200bps | ||
Channel | 1 Ch. | 1 Ch. | |||
LAN | Type | Nothing | - | ||
Connection | - | - | |||
Graphic | RGB (Analog, Digital) | RGB (Analog, Digital) | |||
Sound | LINE (OUT) | LINE (OUT) | |||
Joystick | Nothing | - | |||
Others | Keyboard, Mouse, Printer, 1MB FDD I/F | Keyboard, Mouse, Printer, 1MB FDD I/F | |||
Drive | FDD | 3.5"-2HD 2mode 2drives: NEC FD1139C | 3.5"-2HD 2mode 2drives: NEC FD1139C | ||
HDD | Nothing | - | |||
CD-ROM | Nothing | Nothing | |||
Others | Nothing | Nothing | |||
Display | Nothing | Nothing | |||
Printer | Nothing | Nothing | |||
Others | Nothing | Nothing |
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
