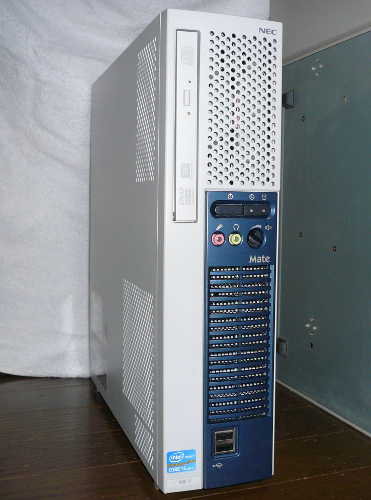

PC-MK34M/E-F

  Normal Power UP
Name PC-MK34M/E-F PC-MK34M/E-F
Mother Board Name MSI MS-7777
Chipset intel Q77 Express (Panther Point)
Socket LGA 1155
System Clock 100MHz 100MHz
Regulator -
VRM On Board
PCI Rev. 2.3
PCI-Express Rev. 3.0
PnP
(BIOS Rev.)		 Support (-) Support (622A0904)
CPU ＃1, 2
(On Die)		 Type Intel Core i5 3570 (64bit) Intel Core i5 3570 (64bit)
Operation Clock 3.40GHz (Max. 3.80GHz) 3.40GHz (Max. 3.80GHz)
1stCache 64KB x2 64KB x2
2ndCache 512KB x2 (On die, Full Speed) 512KB x2 (On die, Full Speed)
3rdCache 6MB (On die, Full Speed) 6MB (On die, Full Speed)
Coprocessor On Chip On Chip
Memory Volume 4GB 16GB
Maximum 16GB 16GB
Type 240pin DDR3 SDRAM non E.C.C. DIMM (Dual Channel Support)
Speed DDR3 1600/ PC3-12800 DDR3 1600/ PC3-12800
Graphic Chip Intel HD 2500 Intel HD 2500
VRAM 〜 1.72GB 〜 1.72GB
Connection On CPU On CPU
Sound Chip Realtek ALC262 Realtek ALC262
Type PCM (2Ch) PCM (2Ch)
MIDI Nothing Nothing
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus PCI-Express x16 Bus - - -
PCI-Express x1 Bus - - -
PCI- Bus - - -
Interface SATA Type Serial-ATA3 Serial-ATA3
Connection On Board PCI Express On Board PCI Express
RAID Nothing Support
IDE Type Nothing Nothing
Connection - -
RAID - -
SCSI Type Nothing Nothing
Connection - -
RS-232C MAX Speed 115.200bps
Channel 1 Ch.
LAN Type 1000BASE-T
Connection On Board PCI Express
Channel 1 Ch.
Graphic RGB (OUT), Digital-DVI RGB (OUT), Digital-DVI
Sound LINE (IN, OUT), Phone, Mic LINE (IN, OUT), Phone, Mic
Joystick Nothing Nothing
Others Keyboard, Mouse, USB (3.0) x2, USB (2.0) x6 Keyboard, Mouse, USB (3.0) x2, USB (2.0) x6
Drive FDD Nothing Nothing
HDD Serial-ATA3:Seagate ST250DM000 (250GB) Serial-ATA3:Seagate ST250DM000 (250GB)
CD-ROM Nothing Nothing
Others DVD S.Multi: SATA, Panasonic UJ-8A0 DVD S.Multi: SATA, Panasonic UJ-8A0
Display Nothing Nothing
Printer Nothing Nothing
Others Nothing Nothing

　このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
