Normal | Power UP | ||||
---|---|---|---|---|---|

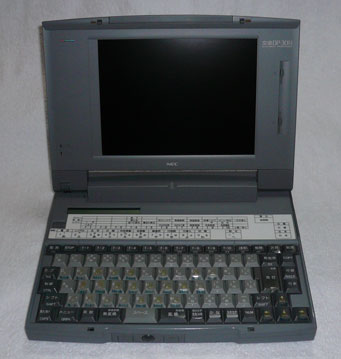

Name | N5820-30N | N5820-30N Expert | |||
Mother Board | Name | NEC Custom (PC-9821Nd) | |||
Chipset | NEC Custom | ||||
Socket | ODP Board Socket | ODP Board Socket | |||
Sys. Clock | 25MHz | 33MHz | |||
Regulator | - | I-O DATA PK-Nd133 | |||
VRM | - | ||||
PnP (BIOS Rev.) |
No Support (?) | ||||
CPU | Type | Intel 486SX-25 (32bit) | AMD Am5x86P75-133 (32bit) | ||
Operation Clock | 25MHz | 133MHz | |||
1stCache | 8KB | 16KB (Write Through) | |||
Coprocessor | Nothing | On Chip | |||
Memory | 2ndCache | Volume | Nothing | ||
Maximum | - | ||||
Type | - | ||||
Volume | 5.6MB | 37.6MB | |||
Maximum | 37.6MB | 37.6MB | |||
Type | F.P. DRAM non Parity Memory Board | ||||
LCD Display | Type | 9.5" Dual Scan STN Type Backlight LCD | |||
Color | 9bit Colors | ||||
MAX Resolution | 640 x 480 dots | ||||
Graphic | Chip | Cirrus Logic GD5428 | Cirrus Logic GD5428 | ||
VRAM | 1MB | 1MB | |||
Connection | On board ML-Bus | On board ML-Bus | |||
Sound | Chip | Nothing | Nothing | ||
Type | - | - | |||
MIDI | Nothing | Nothing | |||
Modem | Name | Nothing | Nothing | ||
MAX Speed | - | - | |||
Extend Bus | PCMCIA Slot | #1 | NEC N5281-10 | NEC | N5821-10 |
#2 | - | - | - | ||
Interface | IDE | Type | IDE | IDE | |
Connection | On Board | On Board | |||
SCSI | Type | Nothing | Nothing | ||
Connection | - | - | |||
RS-232C | MAX Speed | 19,200bps | 19,200bps | ||
Channel | 1 Ch. | 1 Ch. | |||
LAN | Type | 10BASE-T | 10BASE-T | ||
Connection | On PCMCIA Card Slot | On PCMCIA Card Slot | |||
Graphic | RGB (OUT) | RGB (OUT) | |||
Sound | Nothing | Nothing | |||
Joystick | Nothing | Nothing | |||
Others | Tenkeyboard, Mouse, Printer | Tenkeyboard, Mouse, Printer | |||
Pointing Device | Thumb Ball | ||||
Drive | FDD | 3.5"-2HD 3mode 1drive: NEC FD1139C | 3.5"-2HD 3mode 1drive: NEC FD1139C | ||
HDD | IDE: IBM IBM-H2258-A3 (258MB) | Enhanced IDE: IBM DBOA-2720 (720MB) | |||
CD-ROM | Nothing | Nothing | |||
Others | Nothing | Nothing | |||
Display | Nothing | Nothing | |||
Printer | Nothing | Nothing | |||
Others | Nothing | Nothing |
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
