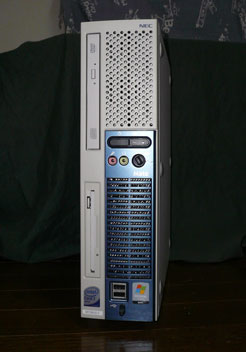

PC-MY28A/E-5

  Normal Power UP
Name PC-MY28A/EZ75 PC-MY30A/EZ75
Mother Board Name MSI MS-7415L2B
Chipset intel Q35 Express (Bearlake-Q) + ICH9DO
Socket LGA 775
FSB Clock 1333MHz 1333MHz
Regulator -
VRM On Board
PCI Rev. 2.3
PCI-Express Rev. 1.1
PnP
(BIOS Rev.)		 Support (447A0600) Support (447A0800)
CPU ＃1, 2
(On Die)		 Type intel Core2 Duo E8400 (64bit) intel Core2 Duo E8400 (64bit)
Operation Clock 2.83GHz 3.00GHz
1stCache 64KB x2 64KB x2
2ndCache 6MB (On die, Full Speed) 6MB (On die, Full Speed)
Coprocessor On Chip On Chip
Memory Volume 512MB 4GB
Maximum 2GB 4GB
Type 240pin DDR2 SDRAM non E.C.C. DIMM (Dual Channel Support)
Speed DDR2 667/ PC2-5300 DDR2 800/ PC2-6400
Graphic Chip intel GMA3100 Nvidia GeForce7300LE
VRAM 256MB 512MB
Connection On Chip On PCI-Express x16 Bus
Sound Chip Realtek ALC262 Realtek ALC262
Type PCM (2Ch) PCM (2Ch)
MIDI Nothing Nothing
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus PCI-Express x16 Bus - NEC PC-D-GREGF3
PCI-Express x1 Bus - - -
PCI- Bus - - -
Interface SATA Type Serial-ATAII Serial-ATAII
Connection On Board PCI Express On Board PCI Express
RAID Nothing Nothing
IDE Type Nothing Nothing
Connection - -
RAID - -
SCSI Type Nothing Nothing
Connection - -
RS-232C MAX Speed 115.200bps
Channel 1 Ch.
LAN Type 1000BASE-T
Connection On Board PCI Express
Channel 1 Ch.
Graphic RGB (OUT) Digital (DVI), Video/S/HDTV (OUT)
Sound LINE (IN, OUT), Phone, Mic LINE (IN, OUT), Phone, Mic
Joystick Nothing Nothing
Others Keyboard, Mouse, Pallalel, USB (2.0) x6 Keyboard, Mouse, Pallalel, USB (2.0) x6,
IEEE-1394a x3
Drive FDD 3.5"-2HD 3mode 1drive 3.5"-2HD 3mode 1drive
HDD Serial-ATAII: (160GB) Serial-ATAII: (160GB)
CD-ROM Nothing Nothing
Others DVD Conbo: ATAPI, Hitachi-LG GCC-T20N DVD Conbo: ATAPI, Hitachi-LG GCC-T20N
Display Nothing I-O DATA LCD-AD241XB (24.1"TFT)
Printer Nothing Nothing
Others Nothing Nothing

　このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
