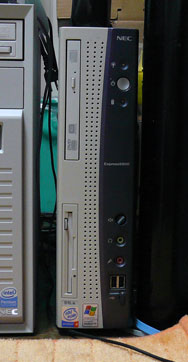

Name: Express5800/51La Ultra+
Use: Experiment File Server
| Normal | Power UP | ||||
|---|---|---|---|---|---|
| Name | N8000-401 | N8000-401 Ultra+ | |||
| Mother Board | Name | MSI MS-6539N1 | |||
| Chipset | Intel 845G (Brookdale-G) + ICH4 | ||||
| Socket | Socket 478 | ||||
| FSB Clock | 400MHz | 533MHz | |||
| Regulator | - | ||||
| VRM | On Board | ||||
| PCI Rev. | 2.2 | ||||
| PnP (BIOS Rev.) |
Support (209A2200) | Support (209A2400) | |||
| CPU | Type | Intel Pentium4-2A (32bit, Internal 64bit) | Intel Pentium4-2.80 (32bit, Internal 64bit) | ||
| Operation Clock | 2.0GHz | 2.8GHz | |||
| 1stCache | 12kμOPs + 8KB | 12kμOPs + 8KB | |||
| 2ndCache | 512KB (On Die, Full Speed) | 512KB (On Die, Full Speed) | |||
| Coprocessor | On Chip | On Chip | |||
| Memory | Volume | 512MB | 1.5GB | ||
| Maximum | 1GB | 2GB | |||
| Type | 184pin DDR SDRAM Non ECC DIMM | ||||
| Speed | DDR200/ PC1600 | DDR266/ PC2100 | |||
| Graphic | Chip | Intel 82845G | Nvidia GeForce6200A | ||
| VRAM | 64MB (Max.) | 128MB | |||
| Connection | On Chip | On AGP-Bus (x4 mode) | |||
| Sound | Chip | ADI AD1881 | ADI AD1881 | ||
| Type | PCM (AC'97 2.2) | PCM (AC'97 2.2) | |||
| MIDI | Sound MAX (XG, GM) | Sound MAX (XG, GM) | |||
| Modem | Name | Nothing | Nothing | ||
| MAX Speed | - | - | |||
| Extend Bus | AGP-Bus (x4 Support) |
- | Leadtek | WinFast A6200TDH | |
| PCI-Bus | ＃1 | - | I-O DATA | 1394-PCI/DVC | |
| ＃2 | - | Kurouto Shikou | SATA2REI3-LPPCI | ||
| CNR-Bus | - | - | - | ||
| Interface | IDE | Type | Ultra-ATA/100 | Serial-ATAII + Ultra-ATA/100 | |
| Connection | On Board PCI-Bus | On PCI-Bus + On Board PCI-Bus | |||
| RAID | - | Support | |||
| SCSI | Type | Nothing | Nothing | ||
| Connection | - | - | |||
| RS-232C | MAX Speed | 115.200bps | |||
| Channel | 1 Ch. | ||||
| LAN | Type | 1000BASE-T | |||
| Connection | On Board PCI-Bus | ||||
| Channel | 1 Ch. | ||||
| Graphic | RGB (OUT) | RGB (OUT), Digital-DVI (OUT), HDTV (OUT), S/Video (OUT) | |||
| Sound | LINE (IN, OUT), Phone, Mic | LINE (IN, OUT), Phone, Mic | |||
| Joystick | Nothing | Nothing | |||
| Others | Keyboard, Mouse, Pallalel, USB (2.0) x4 | Keyboard, Mouse, Pallalel, USB (2.0) x4, IEEE-1394a x2, e-SATA x1 | |||
| Drive | FDD | 3.5"-2HD 3mode 1drive: Mitsumi D353F3-3213 | 3.5"-2HD 3mode 1drive: Mitsumi D353F3-3213 | ||
| HDD | Ultra ATA/133: NEC N8050-122 (60GB) | Serial-ATAII: HGST HDT721032SLA360 (320GB) e-SATA: HGST HDS728080PLA380 (80GB) |
|||
| CD-ROM | ATAPI: TEAC CD-224E (x24) | Nothing | |||
| Others | Nothing | DVD-Multi: ATAPI, LG GSA-T20N | |||
| Display | - | I-O DATA LCD-AD241XB (24.1"TFT) | |||
| Printer | Nothing | Nothing | |||
| Others | Nothing | Nothing | |||
このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
