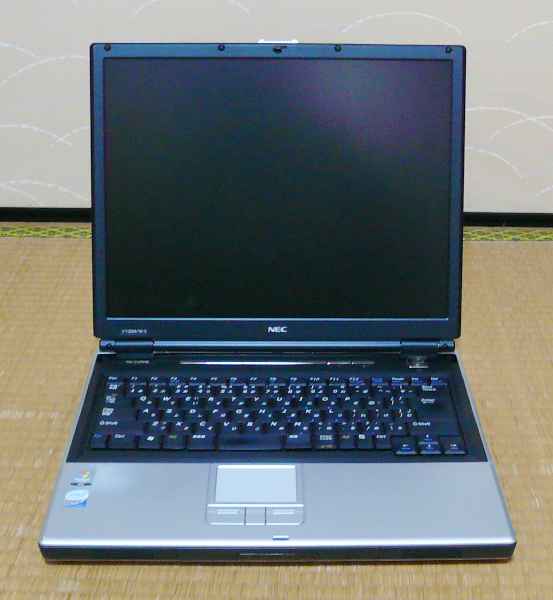

PC-VY20M/W-5

  Normal Power UP
Name PC-VY20M/W-5 PC-VY28A/W-5
Mother Board Name -
Chipset Intel GM965 Express (Crestline-GM) + ICH8M
Socket Socket P
FSB Clock 533MHz 800MHz
Regulator -
VRM On Board
PCI Rev. 2.3
PCI-Express Rev. 1.1
PnP
(BIOS Rev.)		 Support (-) Support (543A0800)
CPU ＃1, 2
(On Die)		 Type Intel Celeron 550 (64bit) Intel Core2 Extreme X9000 (64bit)
Operation Clock 2.0GHz 2.8GHz
1stCache 64KB 64KB x2
2ndCache 1MB (On die, Full Speed) 6MB (On die, Full Speed)
Coprocessor On Chip On Chip
Memory Volume 1GB 4GB
Maximum 4GB
Type 200pin DDR2 SDRAM non E.C.C. DIMM (Dual Channel Support)
Speed DDR2 533/ PC2-4200 DDR2 667/ PC2-5300
LCD Display Type 15" TFT Type Backlight LCD 15" TFT Type Backlight LCD
Color 18bit Colors 18bit Colors
MAX Resolution 1024 x 768 dots (XGA) 1440 x 1050 dots (SXGA+)
Graphic Chip Intel GMA X3100
VRAM 256MB
Connection On Chip Set
Sound Chip Realtek ALC262 Realtek ALC262
Type PCM (2Ch) PCM (2Ch)
MIDI Nothing Nothing
Modem Name Nothing Nothing
MAX Speed - -
Extend Bus Card Bus ＃1 - - -
＃2 - - -
Mini PCI Express Bus - - -
Interface SATA Type Serial-ATAII Serial-ATAII
Connection On Board PCI Express On Board PCI Express
RAID Nothing Nothing
IDE Type Nothing Nothing
Connection - -
RAID - -
SCSI Type Nothing Nothing
Connection - -
RS-232C MAX Speed 115.200bps
Channel 1 Ch.
LAN Type 1000BASE-T
Connection On Board PCI Express
Channel 1 Ch.
Graphic RGB (OUT), S (OUT) RGB (OUT), S (OUT)
Sound LINE (IN, OUT), Phone, Mic LINE (IN, OUT), Phone, Mic
Joystick Nothing Nothing
Others Keyboard, Mouse, Pallalel, USB (2.0) x5 Keyboard, Mouse, Pallalel, USB (2.0) x5
Drive FDD 3.5"-2HD 3mode 1drive: NEC FD3238T 3.5"-2HD 3mode 1drive: NEC FD3238T
HDD Serial-ATAII: Toshiba MK8052GSX (80GB) Serial-ATAII: Toshiba MK8052GSX (80GB)
CD-ROM Nothing Nothing
Others DVD Combo: SATA, HItachi-LG GCC-T10N DVD Super Multi: SATA, HItachi-LG GT40N
Display Nothing Nothing
Printer Nothing Nothing
Others Nothing Nothing

　このスペックは「第三研究所」が所有する機体について紹介しています。改造等により公式のスペックとは異なる場合があります。
